OZVUČOVACIE SYSTÉMY PA arrow Zosilňovače arrow UP 2161

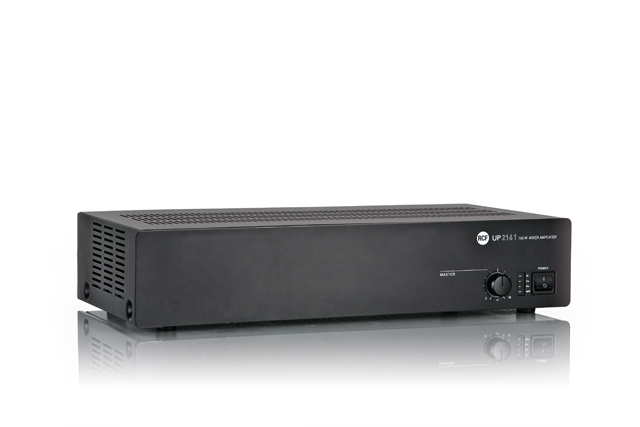

UP 2161

UP 2161
Digitálny zosilňovač triedy D - 160W/100V, 70V a 4 Ohm, 2 vstupy, hlavný vstup s prioritou - svorkovnica/XLR/RJ45 konektor, hudobný vstup 2 x RCA konektory s reguláciou hlasitosti, hĺbok a výšok, regulátor hlasitosti MASTER na prednom paneli

Cena: 342,00 € bez DPH 10 303,09 Sk bez DPH
410,40 € s DPH 12 363,71 Sk s DPH

DATA Library       Stránka výrobcu       Katalogový list SK



Features
  • Power Amplifier designed for the transmission of announcements and / or musical programmes
  • Main input on either removable connector or XLR or RJ 45
  • AUX Input for music sources
  • Controls for treble, bass and Gain on the AUX Input
  • Main Input can have priority over the Aux Input (by means of an external command linked to the removable connector)
  • Main Input has a ‘presence' control and a separate high-pass filter which are useful for improving speech intelligibility
  • Output speaker available either for low impedance loudspeakers (min. 4 Ω) or 100 – 70 V constant voltage line
  • Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)
Amplifier Specifications
  • Power output: 160 W rms
  • Frequency Response: 50 Hz ÷ 18 kHz
  • Distortion: <0.3%%
  • Signal/noise rate: >60 (Inputs 1-4); >80 (AUX In) dB
  • Crosstalk: >60 (Inputs 1-4); >80 (AUX In) dB
Input Section
  • Input sensitivity MIC: -58 dBu
  • Input sensitivity PHANTOM: -21 dBu
  • Input sensitivity LINE: 0 dBu
  • Input sensitivity AUX: -6 ÷ +13 dBu
  • Input impedance MIC: 10 kΩ
  • Input impedance PHANTOM: 5 kΩ
  • Input impedance LINE: 10 kΩ
  • Input impedance AUX: 20 kΩ
  • Bass Tone: (80 Hz) ± 8 dB
  • Treble Tone: (13 kHz) ± 8 dB
  • Presence control: ( 2,15 kHz) + 10 dB
  • High-pass filter: 150 Hz
  • Controls: Master volume, Treble, Bass, Gain, Presence
Output Section
  • Output Loudspeaker Low impedance: 4 Ω
  • Output Loudspeaker Constant voltage: 70 V (31 Ω) / 100 V (62 Ω)
  • Protections: Overload, Short circuit, Thermal
Power Requirement
  • Operating voltage: 115-2 30V / 50-60 V ˜ Hz
  • Power (consumption): 350 W
Physical Specifications
  • Height: 88 / 3,4 mm/inch
  • Width: 444 / 17,4 mm/inch
  • Depth: 220 / 8,6 mm/inch
  • Net weight: 4 / 8.81 kg/lbs
Shipping Information
  • Package height: 200 / 7.87 mm/inch
  • Package width: 500 / 19.68 mm/inch
  • Package depth: 330 / 12.99 mm/inch
  • Shipping weight: 4.5 / 9.92 kg/lbs
