KOMERČNÉ OZVUČENIE PA arrow Reproduktory závesné arrow BS 8

BS 8

BS 8

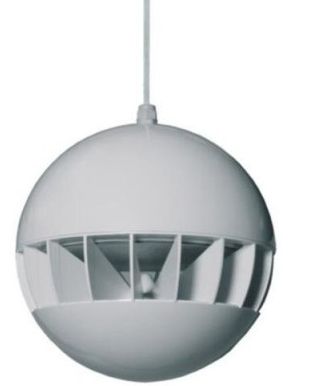

Guľový závesný reproduktor 20 W/100 V s vyžarovacím uhlom 360° /1 až 4 kHz, odbočky 10W a 5W, 160 Hz - 12,5 kHz, dvojitá membrána, 93 dB/1W/1m, skrinka z ABS plastu - odolná voči vlhkosti a UV žiareniu, 5 m pripojovací kábel s bezpečnostným kovovým lank

Cena:  Zistiť cenu
DATA Library       \Stránka výrobcu       Katalogový list SK


  • Pendant speaker
  • For paging and background music
  • 8" diameter dual cone wide band speaker
  • Plastic body - White RAL 9010
  • Built-in transformer for 100V constant voltage connection
  • 5-metre suspension and connection cable included
Acoustical Specifications
  • Type of speaker: Suspended spherical with transformer
  • Frequency Response: 160 Hz ÷ 12.5 kHz
  • Max SPL @ 1m: 106 dB
  • Horizontal coverage angle: 360°
  • Vertical coverage angle: 140°
  • Power Handling: 20 W RMS
  • Peak Power Handling: 40 W PEAK
  • System Sensitivity: 93 dB
Transducers
  • Speaker: 8"
Input Section
  • Input connector: 2 conductor cable, 5 meter lenght
  • Constant voltage: 100 V
  • Power Selection: 20 - 10 - 5 W (100 V)
Cabinet
  • Hardware: Plastic material
  • Colour: White
Physical Specifications
  • Height: 240 / 9.44 mm/inch
  • Width: 250 / 9.84 mm/inch
  • Depth: 250 / 9.84 mm/inch
  • Net weight: 2.65 / 5.84 kg/lbs
Shipping information
  • Package height: 300 / 11.81 mm/inch
  • Package width: 315 / 12.4 mm/inch
  • Package depth: 315 / 12.4 mm/inch
  • Shipping weight: 3.55 / 7.82 kg/lbs
