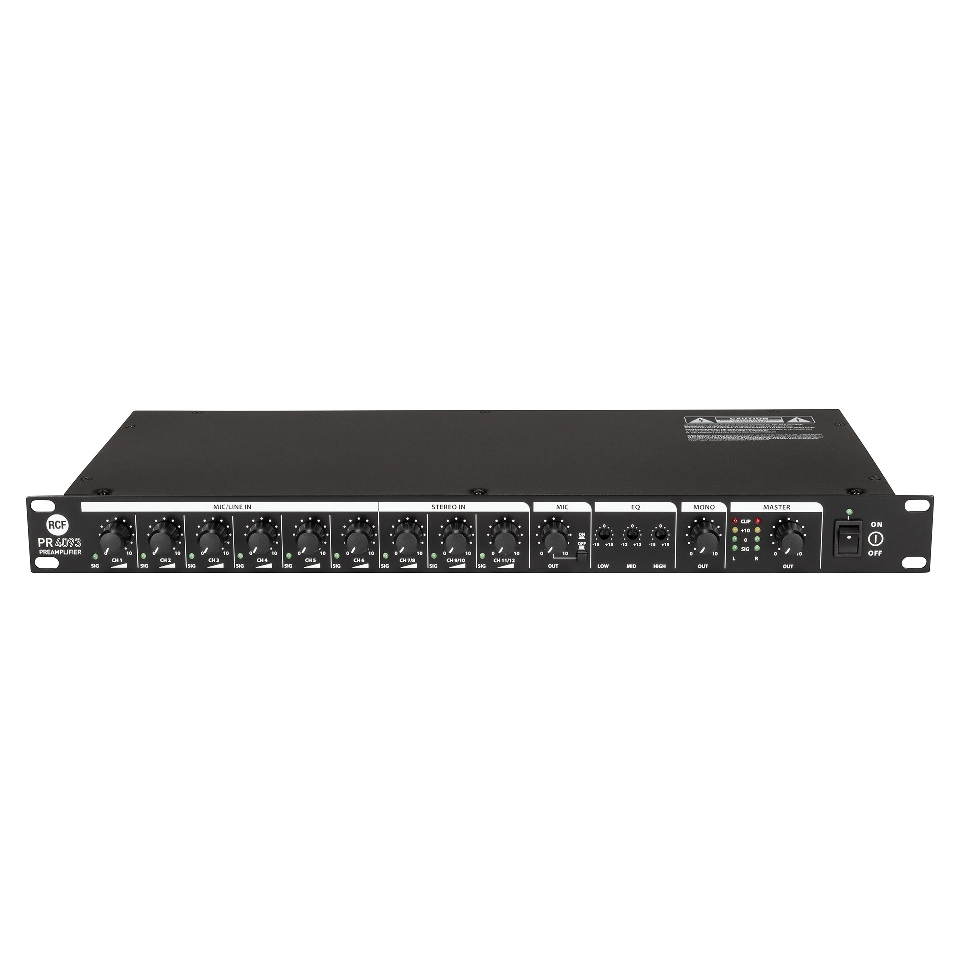

PR 4092

PR 4092
Miixážny predzosilňovač - 9 vstupov/2 výstupy, 9 symetrických vstupov XLR + 4 x stereo vstupy RCA, 9 x regulátor hlasitosti vstupu, 8 vstupov s nastaviteľnou citlivosťou MIC/LINE, 2 stupne priority - vstup 1 VOX/kontakt, vstupy 2 a 3 kontakt, každý vsup

Cena: 300,00 € bez DPH 9 037,80 Sk bez DPH
357,00 € s DPH 10 754,98 Sk s DPH

DATA Library       Stránka výrobcu       Katalogový list SK


Features
  • 9 balanced XLR inputs
  • 1st Input has priority over the other Inputs for paging purpose
  • 8 Inputs have both MIC/LINE sensitivity
  • Switchable PHANTOM 24V and HI-PASS filters provided on universal Inputs
  • Each Input has OUTPUT SELECTOR
  • SIGNAL presence INDICATOR on each Input
  • 2 PRIORITY levels: INPUT 1 by VOX or Contact on removable Euro-block type connector, VOX activated on INPUTS 2&3
  • 4 of the LINE level INPUTS are available on RCA Stereo type connectors
  • 3-tone built-in CHIME generator by contact closure on removable Euro-block type connector
  • 2 balanced XLR outputs
AUDIO SPECIFICATIONS
  • Frequency Response: 20 ÷ 20 Hz ÷ kHz
  • Signal/noise rate: MIC: > 60 dB
  • Distortion: MIC: < 0,5 % LINE: < 0,3 %
INPUT SECTION
  • Input sensitivity: (MIC) - 50 dBu
  • Input sensitivity: (LINE XLR) -10 dBu
  • Input sensitivity: (LINE RCA) -10 dBu
  • Input impedance: (MIC) 5 kΩ équilibré
  • Input impedance: (LINE XLR) 5 kΩ déséquilibré
  • Input impedance: (LINE RCA) 10 kΩ équilibré
  • Bass Tone: (100 Hz) ± 10 dB
  • Treble Tone: (10 kHz) ± 10 dB
  • Presence control: 9 volume controls per input, 1 "CHIME" volume control, 2 general volume controls, 2 bass-tone controls, 2 treble-tone controls
OUTPUT SECTION
  • Output Level: (MASTERS) +4 dBu
  • Output Level: (REC) 0 dBu
  • Output impedance: (MASTERS) 200 Ω
POWER REQUIREMENT
  • Operating voltage: 220÷240 / 110÷120 V ~ 50 / 60 V ~ Hz
  • Power (consumption): 10 VA
  • Max.current: 450 mA
  • Max.ambient temperature : 0 ÷ +55 °C
  • Operating humidity: 20 ÷ 90 % RH non-condensing
PHISICAL SPECIFICATION
  • Height: 44 / 1.73 mm/inch
  • Width: 483 / 19.01 mm/inch
  • Depth: 200 / 7.87 mm/inch
  • Net Weight: 3,9 / 8.59 Kg/Lbs
SHIPPING INFORMATION
  • Package height: 95 / 3.74 mm/inch
  • Package width: 540 / 21.25 mm/inch
  • Package depth: 265 / 10.43 mm/inch
  • Shipping Weight: 3.7 / 8.15 Kg/Lbs










Konverzný kurz: 1 EUR = 30,1260 SKK
