DOROZUMIEVACÍ SYSTÉM INTERKOM arrow N-8011MS

N-8011MS

N-8011MS

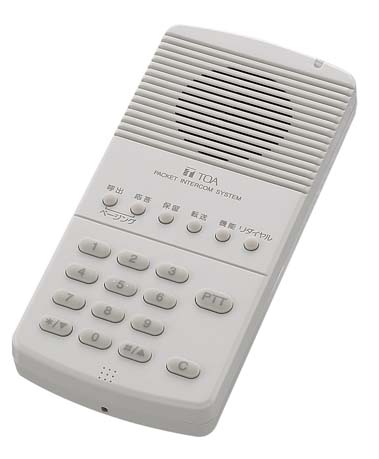

Štandardná master stanica bez slúchadla. Rôzne funkcie volania bez slúchadla-hands free plne duplexná komunikácia, napájanie cez IP (2,4W), montáž na stenu pomocou držiaku YC-280.

Cena: 246,63 € bez DPH 7 429,98 Sk bez DPH
295,96 € s DPH 8 915,97 Sk s DPH
Dostupnosť od
Dodacia lehota: Do 21 dní

 DATA Library       \"web\"Stránka výrobcu       Katalogový list SK

Spec.
Power Source 48V DC (supplied from the network intercom exchange)
Power Consumption 2.4W
Wiring Method Non-polar one pair stranded wire system
Transmission System 2 wire 160kbps echo canceller transmission system
Signal Level Under 0dB*
Speech Method Hands-free conversation
Audio Frequency Range 300 - 7,000Hz
Transmission Range Max. 1500m (ø0.65mm. Loop resistance 170 ohms)
Hands-free Speaker: 0.6W, 8 ohms, 5.7cm cone-type,
Mic.: Omni-directional electret condenser microphone
Line Connecting Terminal RJ-11 modular jack
Setting Method Desk/Surface mounted master station (When mounting to the wall, use the optional bracket: YS-290.)
Operating Temperature 0ºC to +40ºC
Operating Humidity Under 90% RH (no condensation)
Finish Body: ABS resin, gray
Dimensions 92 (W) × 195 (H) × 56.1 (D)mm
Weight 400g
Accessory Connection cord (3m) × 1
Option Wall mounting bracket: YC-290

*0dB = 1V
