DOROZUMIEVACÍ SYSTÉM INTERKOM arrow N-8010MS

N-8010MS

N-8010MS

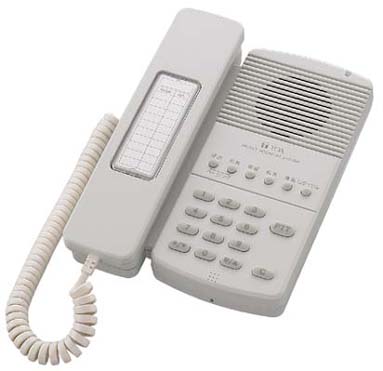

Štandardná master stanica so slúchadlom. Rôzne funkcie vrátane volania so slúchadlom, resp.bez neho-hands free plne duplexná komunikácia, napájanie cez IP (2,4W), montáž na stenu pomocou držiaku YC-280.

Cena: 285,47 € bez DPH 8 600,07 Sk bez DPH
342,56 € s DPH 10 320,08 Sk s DPH
Dostupnosť od
Dodacia lehota: do 21 dní

 DATA Library       \"web\"Stránka výrobcu       Katalogový list SK

Spec.
Power Source 48V DC (supplied from the network intercom exchange)
Power Consumption 2.4W
Wiring Method Non-polar one pair stranded wire system
Transmission System 2 wire 160kbps echo canceller transmission system
Signal Level Under 0dB*
Speech Method Hands-free or handset conversation
Audio Frequency Range 300 - 7,000Hz
Transmission Range Max. 1500m (ø0.65mm. Loop resistance 170 ohms)
Hands-free Speaker: 0.6W, 8 ohms, 5.7cm cone-type,
Mic.: Omni-directional electret condenser microphone
Handset Receive path: Cone-type,
Send path: Electret condenser microphone
Line Connecting Terminal RJ-11 modular jack
Setting Method Desk/Surface mounted master station (When mounting to the wall, use the optional bracket: YS-280.)
Operating Temperature 0ºC to +40ºC
Operating Humidity Under 90% RH (no condensation)
Finish Body, Handset: ABS resin, gray
Dimensions 148 (W) × 208 (H) × 70.5 (D)mm
Weight 700g
Accessory Connection cord (3m) × 1
Option Wall mounting bracket: YC-280

*0dB = 1V
