DOROZUMIEVACÍ SYSTÉM INTERKOM arrow N-8000MS

N-8000MS

N-8000MS

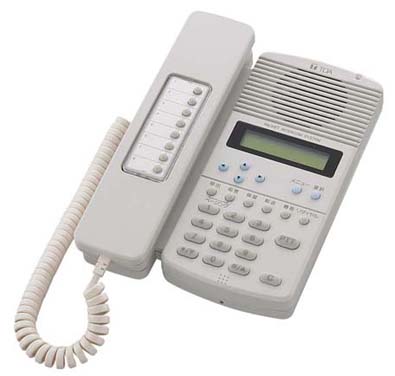

Multifunkčná master stanica so slúchadlom. Rôzne funkcie vrátane volania so slúchadlom, resp.bez neho-hands free plne duplexná komunikácia, možnosťm pripojenia náhlavnej súpravz, externého reproduktora, LCD displej,napájanie cez IP (2,4W), montáž na stenu

Cena: 493,26 € bez DPH 14 859,95 Sk bez DPH
591,91 € s DPH 17 831,94 Sk s DPH

 DATA Library       \"web\"Stránka výrobcu       Katalogový list SK

Spec.
Power Source 48V DC (supplied from the network intercom exchange)
Power Consumption 2.4W
Wiring Method Non-polar one pair stranded wire system
Transmission System 2 wire 160kbps echo canceller transmission system
Signal Level Under 0dB*
Speech Method Hands-free or handset conversation
Audio Frequency Range 300 - 7,000Hz
Transmission Range Max. 1500m (ø0.65mm. Loop resistance 170 ohms)
Hands-free Speaker: 0.6W, 8 ohms, 5.7cm cone-type,
Mic.: Omni-directional electret condenser microphone
Handset Receive path: Cone-type,
Send path: Electret condenser microphone
Display Alphanumeric characters (16 characters × 2 lines LCD)
Line Connecting Terminal RJ-11 modular jack
Headset Terminal Speaker: 3mW, 32 ohms, Microphone: ?49dB*, ø3.5mm mini jack
External Speaker Terminal 0.6W, 8 ohms, screwless connector (2P)
Setting Method Desk/Surface mounted master station (When mounting to the wall, use the optional bracket: YS-280.)
Operating Temperature 0ºC to +40ºC
Operating Humidity Under 90% RH (no condensation)
Finish Body, Handset: ABS resin, gray
Dimensions 148 (W) × 208 (H) × 70.5 (D)mm (excluding a curl cord section)
Weight 800g
Accessory Connection cord (3m) × 1
Option Wall mounting bracket: YC-280
