D-984VC

D-984VC

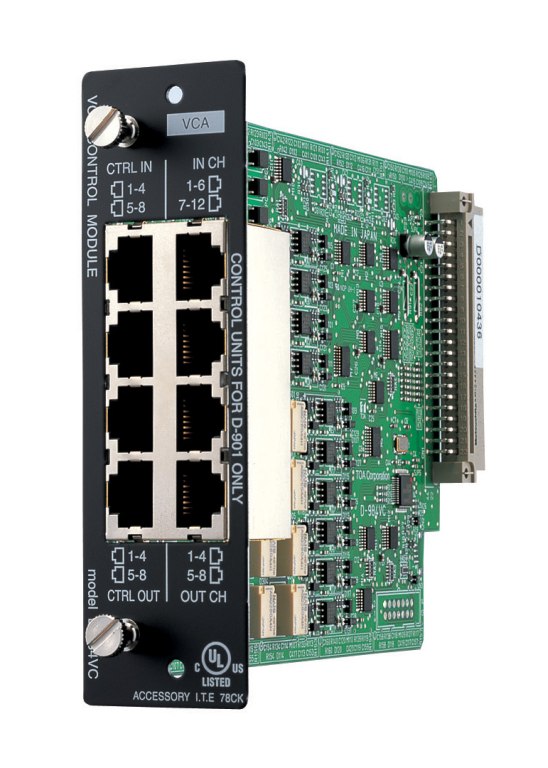

D-984VC- VCA modul diaľkového ovládania pre externú riadiacu jednotku D-911, ovládanie 12 vstupov a 8 výstupov D-901. Modul má 8 riadiacich vstupov (NO kontakt,5VDC,5mA) a 8 výstupov (bezpotenciálový NO kontakt, max.24VDC, 100mA) pre presety, výber stere

Cena:  Zistiť cenu

DATA Library       \Stránka výrobcu       Katalogový list SK

Specification
VCA Control Input +5 V, GND, Terminal 1 - 20 (12 Input channels, 8 output channels),
RJ45 connector × 4
Control contents: Volume control of each input/output channel
Variable range: - dB to + 0 dB
Contact Input COM + Terminal 1 - 8: Open voltage: 5 V DC,
short-circuit current: 5 mA, RJ45 connector × 2
Control
Preset Memory Selection Any preset memory can be recalled.
Control method: No-voltage make of over 100 ms/
No-voltage make single pulse of over 100 ms
Volume Control Any input/output channel volume can be turned UP or DOWN.
Control method: 1 step variation for no-voltage make single pulse of
over 100 ms
1 step continuous operation for every 70ms for no-voltage
make of over 100ms. Can be reset when at break.
Variable Range: - dB to +10 dB
Channel Any input/output channel can be turned ON and OFF.
Control method: No-voltage make of over 100 ms/
No-voltage make single pulse of over 100 ms
Stereo Selection Input channel lines of the D-936R (optional), or the D-937SP
(optional) (4 stereo input module) can be selected.
Control method: No-voltage make of over 100 ms/
No-voltage make single pulse of over 100 ms
Contact Output COM + Terminal 1 - 8: No-voltage make contact,
contact capacity: 24 V DC, 100 mA,
RJ45 connector × 2
Finish Panel: Pre-coated steel plate, black, 30% gloss
Dimensions 35 (W) × 119.5 (H) × 178.4 (D) mm
Weight 170 g
