OZVUČOVACIE SYSTÉMY PA arrow Zvukové projektory arrow CS-154

CS-154

CS-154

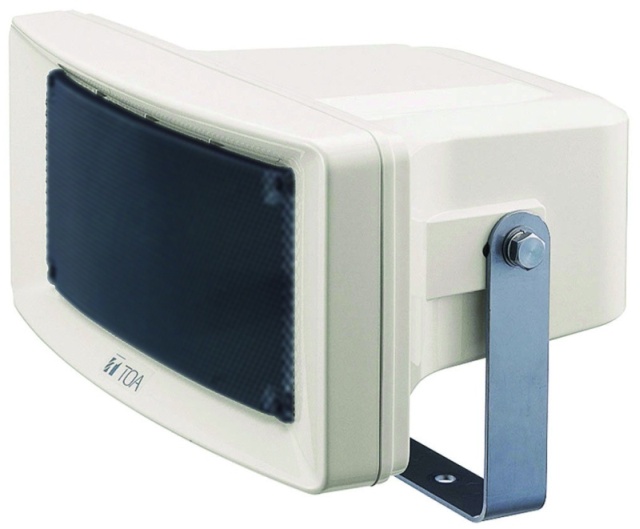

CS-154 - zvukový projektor pre vonkajšie prostredie, kvalitný prenos hlásenia a hudby, široký frekv. rozsah 150 Hz - 15 kHz, 15W/100V, odbočky 10W a 5W, plastová skrinka IP64, kovová mriežka, 97 dB, 366 x 230 x 272 mm (š x v x h).

Cena: 79,00 € bez DPH 2 379,95 Sk bez DPH
94,80 € s DPH 2 855,94 Sk s DPH

DATA Library       Stránka výrobcu       Katalogový list SK

Spec
Rated Input CS-154: 15W
CS-304: 30W
Rated Impedance CS-154: 100 V line; 670Ω (15W), 1kΩ (10W), 2kΩ (5W),
70 V line; 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W)
CS-304: 100V line; 330Ω (30W), 500Ω (20W), 1kΩ (10W)/
70V line; 170Ω (30W), 330Ω (15W), 500Ω (10W), 1kΩ (5W)
Sound Pressure Level BS-154: 97dB (1W, 1m)
BS-304: 98dB (1W,1m)
Frequency Response BS-154: 150 - 15,000Hz
BS-304: 120 - 15,000Hz
Speaker Component 12cm cone-type dynamic speaker (treated for splash proof)
Horizontal Directivity Constant directivity horn 90º (± 45º horizontal from front axis)/Over 93dB (1W, 1m), 3kHz at ± 45º
Speaker Code 2-core cabtyre cable with diameter of 6mm
Finish Horn, cover; ABS resin, off-white, paint
Bracket; Stainless stee
/Net; Aluminum, gray, paint/Screw; Stainless steel
Dimensions 366 (W) × 230 (H) × 272 (D)mm
Weight BS-154: 2.8kg
BS-304: 3.1kg
