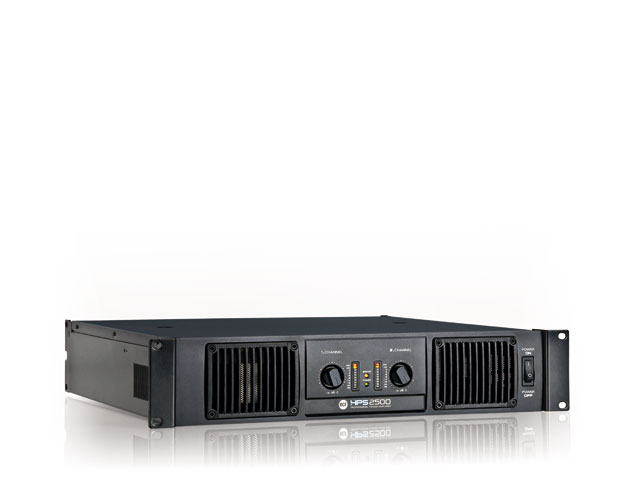

HPS 2500

HPS 2500
Profesionálny digitálny výkonový zosilňovač triedy H, 2 x 1 100 W RMS / 4 ohm, 2 x 700W/ 8 ohm, vstupné konektory XLR, výstupné konektory Speakon, 19"/2U, 19kg

Cena: 580,00 € bez DPH 17 473,08 Sk bez DPH
696,00 € s DPH 20 967,70 Sk s DPH

DATA Library       Stránka výrobcu       Katalogový list SK


Features
  • Fast response and low distortion
  • Easy to configure in stereo / mono / bridge modes
  • Extensive protective circuits ensure high reliability and operating safety
  • Front panel signal / clip / protect LED indicators
  • Minimum load impedance (stereo / mono): 2 Ohm
  • XLR input connectors
  • SPEAKON output connectors
  • 2 unit 19" rack, low weight for easy transportation
  • Switchable Limiter
Amplifier Specifications
  • Power output stereo 2Ω: 2 x 1400 W rms
  • Power output stereo 4Ω: 2 x 1100 W rms
  • Power output stereo 8Ω: 2 x 700 W rms
  • Power output bridged 4Ω: 2800 W rms
  • Power output bridged 8Ω: 2200 W rms
  • Frequency Response -3 dB: 20 Hz ÷ 20 kHz
  • Signal/noise rate: 106 dB
  • Damping factor: > 300
  • Slew rate: 50V/μS
Input Section
  • Input connector: xlr
  • Input sensitivity: 1.4 dBm/V RMS
  • Input impedance: 20 kΩ (balanced), 10 kΩ (unbalanced)
Output Section
  • Output connector: Speakon
System Parameters
  • Cooling: Forced
  • Voltage gain: 32 – 26 dB
  • Amplifier class: H
Power Requirements
  • Operating voltage: 220 ÷ 240 V (50 / 60 Hz) V ~ Hz
Physical Specifications
  • Height: 88/3.4 mm/inch
  • Width: 482/18.9 mm/inch
  • Depth: 420/16.5 mm/inch
  • Net Weight: 19/41,8 kg/lbs
