OZVUČOVACIE SYSTÉMY PA arrow Reproduktory tlakové arrow TC-651M

TC-651M

TC-651M

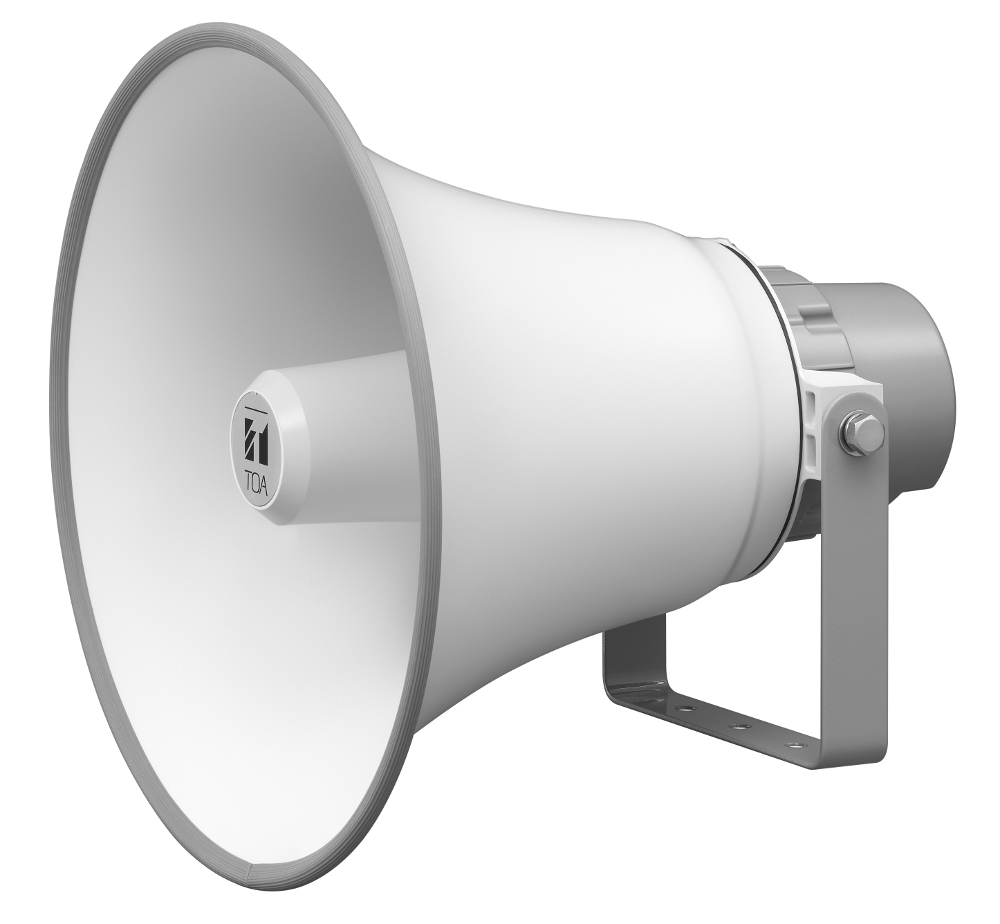

TC-651M - tlakový reproduktor pre vonkajšie prostredie, IP65, vysoká zrozumiteľnosť hláasení, 50W/100V, odbočky 30W a 15W/100V, frekv. rozsah 200 Hz - 6 kHz, citlivosť 111 dB, rozmery Ø 400 x 376 mm, 4 kg

Cena: 61,70 € bez DPH 1 858,77 Sk bez DPH
74,04 € s DPH 2 230,53 Sk s DPH

DATA Library       Stránka výrobcu       Katalogový list SK




Rated Input 50 W
Line Voltage 100 V line or 70 V line
Rated Impedance 100 V line: 200 Ω (50 W), 330 Ω (30 W), 670 Ω (15 W)
70 V line: 100 Ω (50 W), 200 Ω (25 W), 330 Ω (15 W), 670 Ω (7.5 W)
Sencitivity 111 dB (1 W, 1 m)
Frequency Response 200 Hz - 6 kHz
Dust/Water Protection IP65
Polarity Hot: Black, Com: White
Operating Temperature -20 ℃ to +60 ℃ (-4 ゜F to 140 ゜F) (must be free from dew condensation)
Finish Horn flare: Aluminum, off-white, powder coating
Reflector horn: ABS resin, off-white
Bracket holder: Aluminum, white, powder coating
Bracket: Steel, gray, powder coating
Rear cover: ABS resin, gray
Screw and bolts: Stainless steel
Speaker Cable: Polyvinyl chloride insulated cabtyre cable
(6 mm (0.24") in diameter, 600 mm (1.97 ft) in length)
Dimensions φ400 (W) × 376 (D) mm (φ15.75" × 14.8")
Weight 4 kg (8.82 lb)
Rated Input 50 W
Line Voltage 100 V line or 70 V line
Rated Impedance 100 V line: 200 Ω (50 W), 330 Ω (30 W), 670 Ω (15 W)
70 V line: 100 Ω (50 W), 200 Ω (25 W), 330 Ω (15 W), 670 Ω (7.5 W)
Sencitivity 111 dB (1 W, 1 m)
Frequency Response 200 Hz - 6 kHz
Dust/Water Protection IP65
Polarity Hot: Black, Com: White
Operating Temperature -20 ℃ to +60 ℃ (-4 ゜F to 140 ゜F) (must be free from dew condensation)
Finish Horn flare: Aluminum, off-white, powder coating
Reflector horn: ABS resin, off-white
Bracket holder: Aluminum, white, powder coating
Bracket: Steel, gray, powder coating
Rear cover: ABS resin, gray
Screw and bolts: Stainless steel
Speaker Cable: Polyvinyl chloride insulated cabtyre cable
(6 mm (0.24") in diameter, 600 mm (1.97 ft) in length)
Dimensions φ400 (W) × 376 (D) mm (φ15.75" × 14.8")
Weight 4 kg (8.82 lb)
