HB-1

HB-1

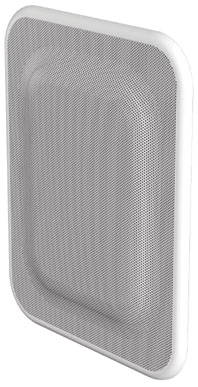

HB-1 - extrémne plochý subwoofer pre zapustenú montáž do stropu alebo steny, 50W/8Ohm (100V s voliteľným transformátorom MT-S0601), 45 - 200 Hz, 91 dB, 430 x 544 x 135 mm (š x v x h), 11 kg.

Cena: 310,00 € bez DPH 9 339,06 Sk bez DPH
372,00 € s DPH 11 206,87 Sk s DPH

DATA Library       \Stránka výrobcu       Katalogový list SK

Spec
Enclosure Acoustic Super Woofer
Power Handling Capacity 240W (continuous program, 40 - 200Hz)/
80W (continuous pink noise, 40 - 200Hz)
Rated Impedance 8Ω
Sound Pressure Level 91dB (1W/ 1m), installation in 1/2 free sound field(Measured by installing the unit in the center of a ceiling or wall.)185dB (1W, 1m) installation in free sound field (Measured in anechoic chamber.)
Frequency Response 45 - 200Hz (-10dB) installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling or wall.)
Speaker Component 20cm cone speaker
Input Terminal Detachable screw terminal, (+)/(-) 2 each (for bridge connection)
Usable Cable Solid cable, stranded cable: 0.2 - 2.5mm2 (AWG No. 24 - 14 equivalent)
Finish Enclosure; Steel plat, black paint/Front Frame; Fire-resistant ABS resin, off-white, paint/Punched net; Steel plate, off-white, paint/Mounting bracket; Steel plate, black paint
Dimensions (W × H × D) 430 × 544 ×135mm
Weight 11kg (including front grille and mounting bracket)
Accessory Front frame ×1/Mounting bracket × 1/ Anchor piece × 2
Option Matching transformer: MT-S0601 (rated 60W)
