OZVUČOVACIE SYSTÉMY PA arrow UP 2162

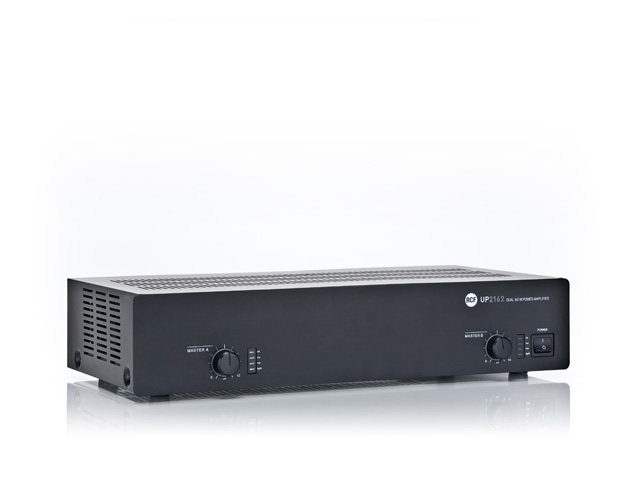

UP 2162

UP 2162
2 samostatné digitálne zosilňovač triedy D - každý s výkonom 160W/100V, 70V a 4 Ohm, každý zosilňovač má 2 linkové vstupy, jvstupy 1 s nastaviteľnou prioritou (kontakt), vstupy 2 majú na zadnej strane regulátory hlasitosti, hĺbok a výšok, 2 x regulátor M

Cena: 597,00 € bez DPH 17 985,22 Sk bez DPH
716,40 € s DPH 21 582,27 Sk s DPH

DATA Library       Stránka výrobcu       Katalogový list SK


Features
  • Power Amplifier designed for the transmission of announcements and / or musical programmes
  • Main input on removable connector
  • AUX Input for music sources removable connector
  • Controls for treble, bass and Gain on the AUX Input
  • Main Input can have priority over the Aux Input (by means of an external command linked to the removable connector)
  • Output speaker available either for low impedance loudspeakers (min. 4 Ω) or 100 – 70 V constant voltage line
  • Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)
Amplifier Specifications
  • Power output: 2 x 160 W rms
  • Frequency Response: 50 Hz ÷ 18 kHz
  • Distortion: <0.3%%
  • Signal/noise rate: 80 dB
  • Crosstalk: 80 dB
Input Section
  • Input sensitivity LINE: 0 dBu
  • Input sensitivity AUX: 0 ÷ -20 dBu
  • Input impedance LINE: 20 kΩ
  • Input impedance AUX: 20 kΩ
  • Bass Tone: (100 Hz) ± 8 dB
  • Treble Tone: (10 kHz) ± 8 dB
  • Controls: Master volume, Treble, Bass, Gain
Output Section
  • Output Loudspeaker Low impedance: 4 Ω
  • Output Loudspeaker Constant voltage: 70 V (31 Ω) / 100 V (62 Ω)
  • Protections: Overload, Short circuit, Thermal
Power Requirement
  • Operating voltage: 115-2 30V / 50-60 V ˜ Hz
  • Power (consumption): 2 x 350 W
Physical Specifications
  • Height: 88 / 3,4 mm/inch
  • Width: 444 / 17,4 mm/inch
  • Depth: 220 / 8,6 mm/inch
  • Net weight: 7 / 15.43 kg/lbs
Shipping Information
  • Package height: 200 / 7.87 mm/inch
  • Package width: 500 / 19.68 mm/inch
  • Package depth: 330 / 12.99 mm/inch
  • Shipping weight: 7.5 / 16.53 kg/lbs
